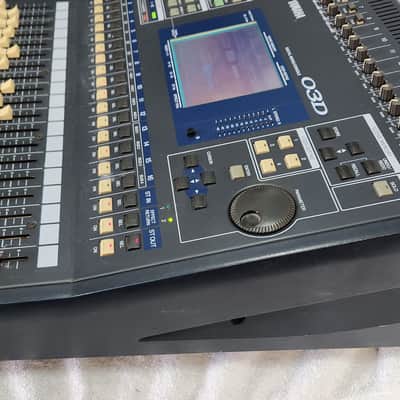

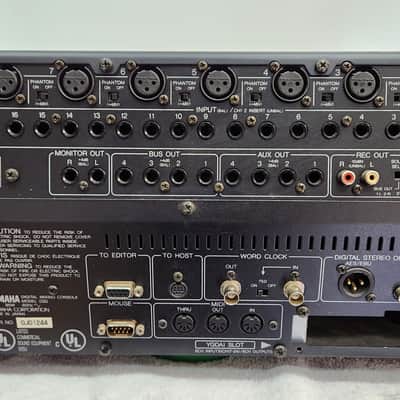

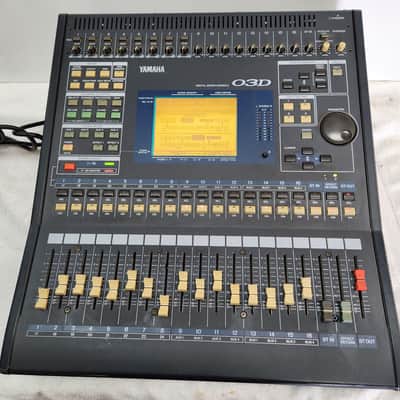

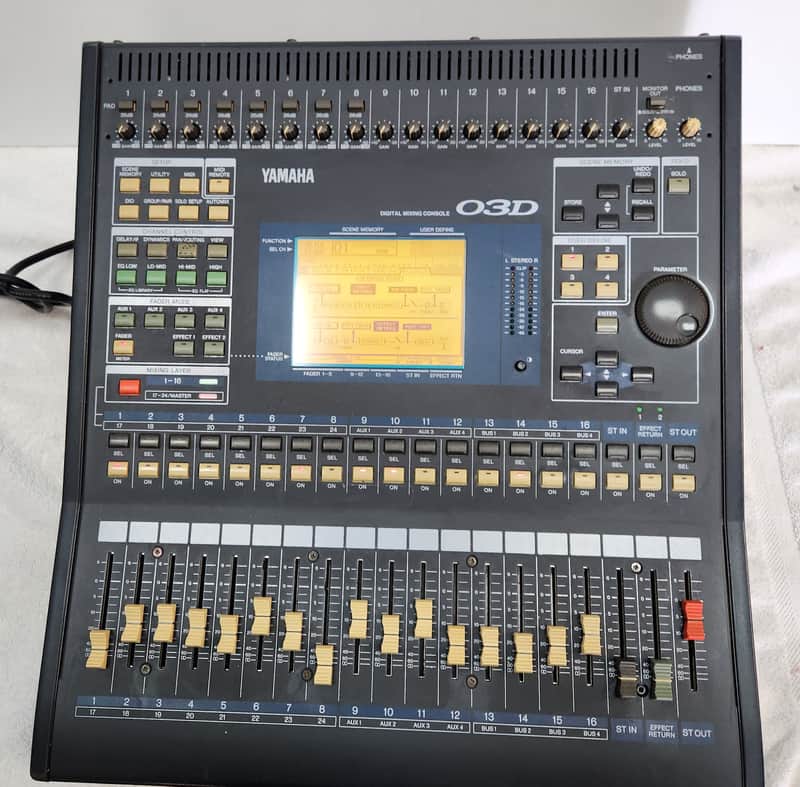

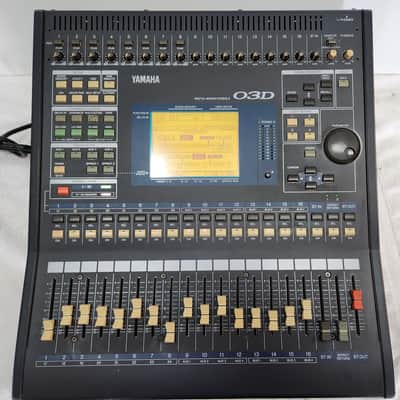

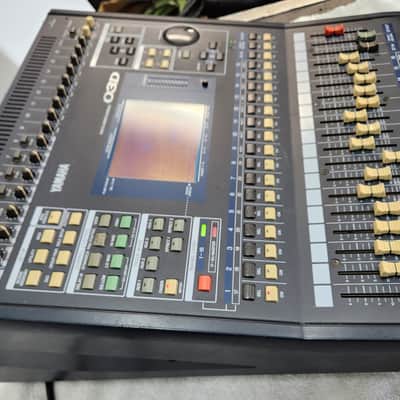

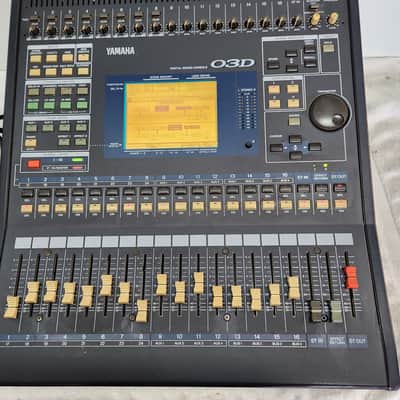

Yamaha Digital Mixer model 03D, Made In Japan

Yamaha Digital Mixer model 03D, Made In Japan

This Digital Mixer 03D is functional however because of the age there are scratches here and there

-> See all photos

-> Includes copy of 291 pages Buyer's Manual

General Specifications;
Frequency Response 20Hz - 20kHz +1, -3dB (+4dB into 600 Ohms) Dynamic Range 110 dB min. STEREO OUT D/A converter 105 dB typ. STEREO IN to STEREO OUT (AD/DA) 100 dB min. STEREO IN to STEREO OUT (AD/DA) THD (Total Harmonic Distortion) Less than 0.1% (20Hz-20kHz @ +14dB into 600 Ohms) Less than 0.01% for STEREO IN to STEREO OUT (1kHz @ +18dB into 600 Ohms) Hum & Noise (20 Hz-20 kHz)
Rs = 150 ohm, input gain = max.
input pad = off,
input sensitivity = -60dB -128dB equivalent input noise -94 dB residual output noise from STEREO OUT (STEREO OUT = OFF)k -94 dB (98 dB S/N) STEREO OUTPUT. Master fader at nominal level and all CH faders at minimum. -64 dB (68 dB S/N) STEREO OUTPUT. Master fader and one CH fader at nominal level. Maximum Voltage Gain 76 dB CH IN to STEREO OUT/BUS OUT 76 dB CH IN to AUX OUT (pre fader) 12 dB STEREO IN to STEREO OUT 76 dB CH IN to MONITOR OUT (via Stereo bus) Crosstalk Adjacent Channels -70 dB (1 kHz) Input to Output -70 dB (1 kHz) Sampling Rate Internal 48 kHz/44.1 kHz External 32 kHz-48 kHz +/-6% Signal Delay Less than 2.5 ms input to output (fs = 48 kHz) Digital Output Dither 16-24 bit Faders Type 60mm motorized Resolution +6 to -90, -unlimited dB Display 320 x 240 dot backlit LCD (with contrast control) EQ High +/-18dB, 20 Hz-20.1 kHz, LPF, peaking, shelving High-Mid +/-18dB, 20 Hz-20.1 kHz, peaking Low-Mid +/-18dB, 20 Hz-20.1 kHz, peaking Low +/-18dB, 20 Hz-20.1 kHz, HPF, peaking, shelving Memories/
Libraries Scene 51 (1 preset, 50 user) Channel 51 (2 preset, 49 user) EQ 80 (40 preset, 40 user) Effects 96 (64 preset, 32 user) Dynamics 80 (40 preset, 40 user) Stereo Output Meters 12-segment LED meter x2 Power Requirements USA & Canada 120V AC, 60Hz European 230V AC, 50Hz Power Consumption 85W Dimensions 460 x 516 x 204mm (18.1" x 20.3" x 8") Weight 16kg (35.3lbs) Free-air operating temperature 10°C to 35°C (50°F to 95°F) Relative Humidity 25%-80%
