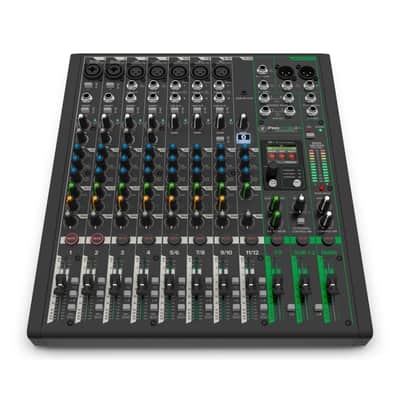

Mackie ProFXv3+ Series mixers combine professional analog mixing with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth® and enhance your sound with upgraded GigFX+ eects on a color LCD screen.

Onyx Preamps
Our renowned Onyx mic preamps are designed for maximum studio-quality performance. Ultra-low noise and up to 60dB of gain means tons of headroom and crystal-clear sound, whether you’re live streaming, podcasting or recording music.

GigFX+ Effects Engine
High-resolution GigFX+ eects include 12 FX Processors you can edit and save on the fly via the full-size LCD screen. Combining the warmth of an analog recording console with precise digital eects, the ProFXv3+ Series is ideal for home studios and live events alike.

USB Recording Modes
Record at pristine 24-bit / 192 kHz quality with a built-in 2×4 USB-C audio interface, complete with three recording modes: Standard for the full mix with effects, Loopback to include computer audio, and Interface to record channel 1-2 without effects or processing.

Bluetooth®
Use the dedicated Bluetooth® channel to send and receive audio from devices like smartphones and tablets. For podcasters, it’s an eortless way to bring in phone calls. For musicians and performers, it’s an easy way to stream outside music and backing tracks.

FEATURES

High-Resolution GigFX+™ Effects Engine

• Enhance your sound with 12 upgraded FX options
• Edit and save presets on the fly with the color LCD screen

24-Bit / 192kHz 2×4 USB Audio Interface

• USB-C connection

Switch Between Recording Modes

• Standard: Main mix including GigFX+ effects and tone-shaping EQ
• Loopback: Computer audio added to main mix, great for live streaming
• Interface: Untouched audio from channels 1 and 2, without effects or EQ

Bi-Directional Bluetooth®

• Integrate callers from an external device like a smartphone or tablet
• Stream music from your device, directly into the mixer

Effortless Latency-Free Monitoring

• Easily blend between monitoring your computer output and a direct feed from the mixer

Record Like a Pro

• Waveform OEM™ included

Signature Rugged Design

• Legendary Built-Like-A-Tank design
• Solid steel chassis
• Tough ABS side protection

Renowned Onyx Mic Preamps

• 7 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance

The Essential Mixing Tools You Need

• 3-band EQ on all channels
• One-knob compression on channels 1 through 4
• Hi-Z switches allow direct connection of instruments
• 100 Hz low-cut filter and 48V phantom power on all mic channels
• Stereo 1/8" input on channel 11/12
• FX and Monitor send busses
• Subgroup bus

SPECIFICATIONS

Inputs

• Input Channels: 12
• Mono Mic/Line: 4
• Mic/Stereo Line: 3
• Stereo Line: 1 or 4
• Mic Preamp: 7
• Global Phantom Power (+48V): Yes
• 100 Hz Low Cut Filter: Yes
• Channel EQ: 3-Band Fixed
• Channel Inserts: 4

Outputs

• Aux Sends: 2
• Subgroups: 1
• Main Outputs: XLR & 1/4"
• Main Meters: 2 × 12

Other

• Level Controls: 60 mm Faders
• Internal FX: Stereo w/ 12 Customizable FX Processors
• Compressors: 4 (Knob)
• Digital Recording: 2×4 192kHz 24-Bit
• Recording Modes: Standard, Loopback, Interface
• USB Connector: USB-C
• Accessories (Optional): Mixer Bag / Dust Cover

Construction

• Power Supply: Internal Universal 100–240 VAC
• Rackmount: Optional
• Weight: 7.9 lb / 3.6 kg
• Dimensions: 14.8 × 13.0 × 4 in / 376 × 330 × 101 mm
