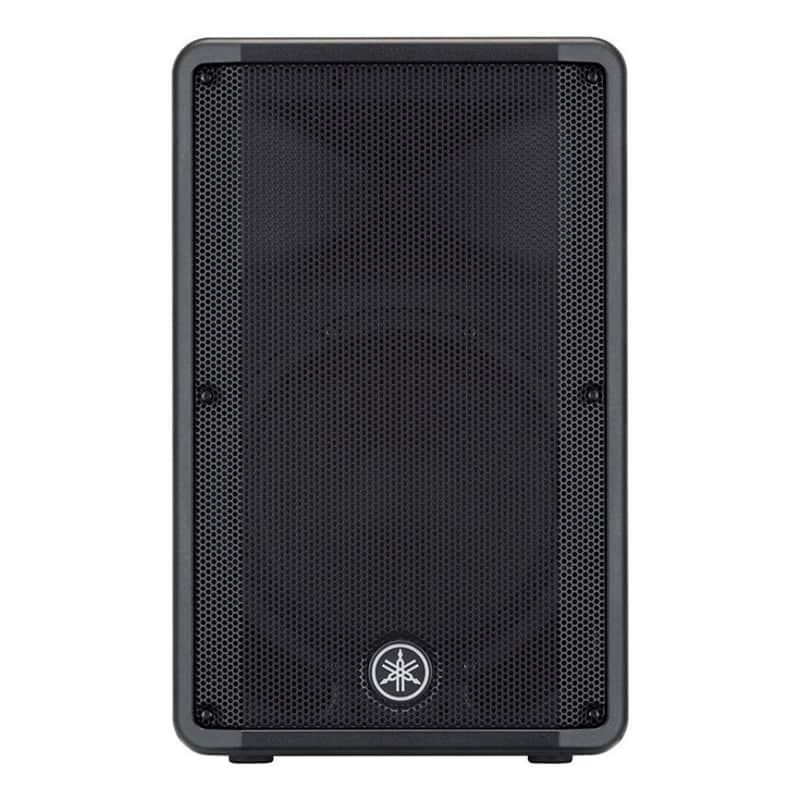

Yamaha CBR12 700W 12" Passive 2-Way Speaker
Only 1 left
Grab it before it's gone
Our users rate Reverb
Custom Designed Transducers
The CBR12 is equipped with a 12 inch custom designed driver and a 2 inch compression driver capable of delivering up to 700W of peak power, allowing it to achieve an impressive maximum sound pressure level of up to 125dB whilst consistently retaining high audio quality, professional performance and reliability. The CBR12 also features Yamaha's extremely accurate wide dispersion constant-directivity horn that evenly projects clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area.
HF Protection & Responsive LF UnitThe CBR12 cleverly utilizes a unique circuitry system which acts as a protective step to automatically limit the level of output in the high frequency driver to reduce the chance of blowing a speaker due to over powering the output. Whilst the incorporation of the extremely responsive low frequency unit allows the Yamaha passive speaker to sound sensationally crisp, clear and full at any volume.
Rugged, Portable and MountablePortability and versatility factored heavily into the design, with a rugged, compact and light-weight plastic enclosure. A sleek steel grille and ergonomic carry handles allowing for fast, safe and easy transportation. The CBR speaker features an optimized 50 degree wedge angle for floor monitoring use, while the symmetrical cabinet shape allows them to be placed in a "mirror-mode" configuration to avoid high frequency 'hot-spots' and is equipped with rigging points compatible with optional speaker brackets and eyebolts for installed applications.
Features- Custom designed transducers & wide-dispersion constant directivity horn
- High frequency protection & highly responsive low frequency unit
- Rugged, compact & portable enclosure design
- Simple connectivity
- Floor monitoring design
- Rigging points for installation applications
- Ideal for front-of-house sound, floor monitoring or installations
- Speaker Type: 2-Way Speaker, Bass-Reflex Type
- Frequency Range (-10dB): 48Hz - 20kHz
- Nominal coverage (H): 90º
- Nominal coverage (V): 60º
- Components
- LF: 12" Cone, 2" Voice Coil (Ferrite Magnet)
- HF: 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
- Crossover Frequency: 2.1 kHz
- Power Rating
- Noise: 175W
- PGM: 350W
- Peak: 700W
- Nominal Impedance: 8Ω
- SPL Sensitivity (1W; 1m on axis): 96
