Fender Bandmaster Reverb TFL5005D w/2x12 Cab

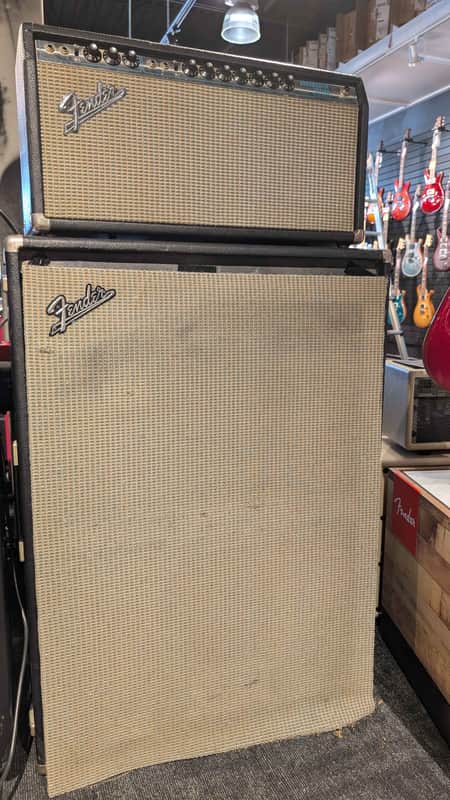

The Fender Bandmaster Reverb TFL5005D is a vintage Silverface tube amplifier from the early 1970s, combining classic Fender clean tones with onboard tube-driven reverb and vibrato. This piggyback setup pairs the Bandmaster Reverb head with its large matching Fender Bandmaster Rev. 12 vertical 2x12 speaker cabinet.

Rated at 45 watts RMS, the Bandmaster Reverb features separate Normal and Vibrato channels, each with two inputs and a Bright switch. The Vibrato channel adds Fender spring reverb along with adjustable Speed and Intensity controls for the vibrato circuit.

Due to the size and weight of this vintage amplifier and cabinet, this item is available for in-store pickup only and cannot be shipped.

Features:

• Vintage Silverface Fender tube amplifier
• TFL5005D model
• 45-watt RMS output
• Two channels: Normal and Vibrato
• Two inputs per channel
• Bright switch on each channel
• Tube-driven spring reverb
• Fender vibrato with Speed and Intensity controls
• 2 × 6L6GC power tubes
• 5U4GB tube rectifier
• Matching Fender Bandmaster Rev. 12 vertical 2x12 cabinet
• Made in USA

Condition:

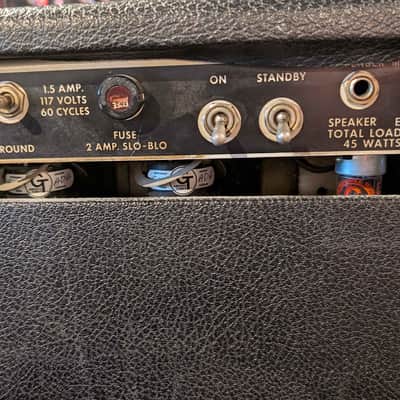

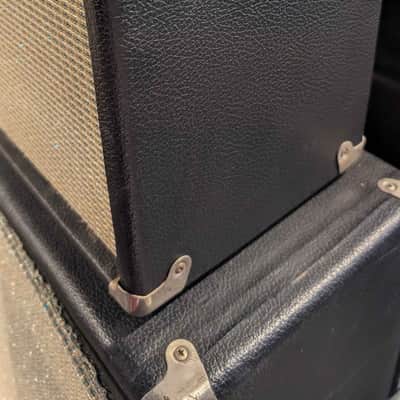

This amplifier and cabinet are used and show cosmetic wear consistent with their age. The head has visible wear, oxidation, scratches, and markings on the control and rear panels, along with wear to the Tolex and hardware. The cabinet also shows significant cosmetic wear, particularly on the front panel, with scratches, marks, and areas of wear throughout.

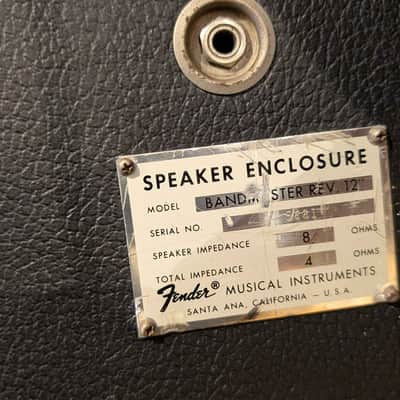

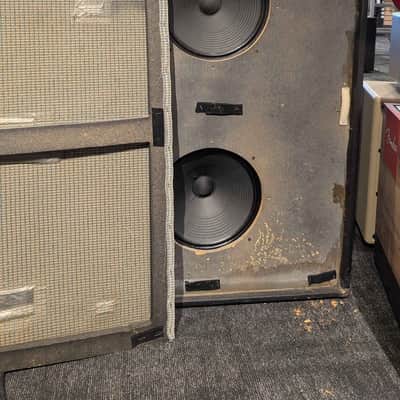

The cabinet retains its Fender Bandmaster Rev. 12 identification plate. The front panel has been removed in the photos to show the two installed 12" speakers. Please refer to the photos for a detailed look at the cosmetic condition and components.

Model: Bandmaster Reverb TFL5005D
Era: Early 1970s
Output Power: 45 watts RMS
Channels: Normal and Vibrato
Power Tubes: 2 × 6L6GC
Rectifier: 5U4GB
Preamp Tubes: 3 × 7025, 2 × 12AT7, 1 × 12AX7

Normal Channel: Volume, Treble, Bass, Bright switch
Vibrato Channel: Volume, Treble, Bass, Bright switch, Reverb, Speed, Intensity
Effects: Spring Reverb and Vibrato

Inputs: 4 × 1/4" total, two per channel
Speaker Output: 1/4"
External Speaker Output: 1/4"
Vibrato Pedal Connection: 1/4"
Reverb Pedal Connection: 1/4"
Reverb Input/Output: RCA

Model: Fender Bandmaster Rev. 12
Configuration: Vertical 2x12
Speaker Impedance: 8 ohms each
Total Cabinet Impedance: 4 ohms
