The ZVEX Nano Head is a palm-sized all-tube guitar amplifier head designed to deliver genuine high-voltage tube response at very low output levels. With up to 0.5 watt of distorted output, it can move from quiet clean tones to surprisingly aggressive tube crunch while remaining compact enough for recording, home use, or easy transport.

Key Features

• Compact all-tube guitar amplifier head
• 0.5-watt maximum output
• Approx. 0.1 watt clean output
• Designed for 8-16 ohm speaker cabinets
• Internal 230VDC high-voltage supply for authentic tube overdrive
• Volume control ranges from clean to heavily overdriven
• Brightness switch
• Thickness control with Normal, Thin, and Fat settings
• Mellow control with Mellow 2, Normal, and Mellow 1 settings
• Built-in low-power internal speaker
• Extremely compact, travel-friendly design

Specifications Amplifier

Type: All-Tube Guitar Amplifier Head
Output Power: 0.5 W Dirty / 0.1 W Clean
Output Impedance: 8-16 Ohms
Input Impedance: 1,000,000 Ohms
Internal Speaker: 0.4 Watt

Controls

Volume: Clean to High-Gain Tube Crunch
Brightness: Two-Position Bright Switch
Thickness: Normal / Thin / Fat
Mellow: Mellow 2 / Normal / Mellow 1

Power & Dimensions

Power Supply: 12VDC 1.5A
Internal High-Voltage Supply: 230VDC
Dimensions: Approx. 4.5" x 3.15" x 3"

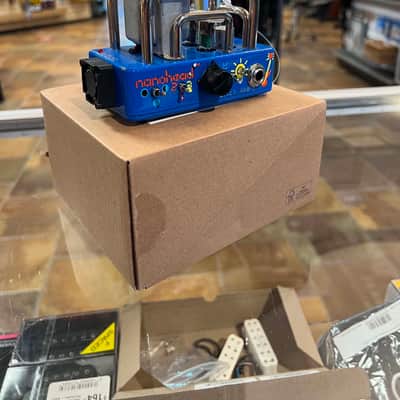

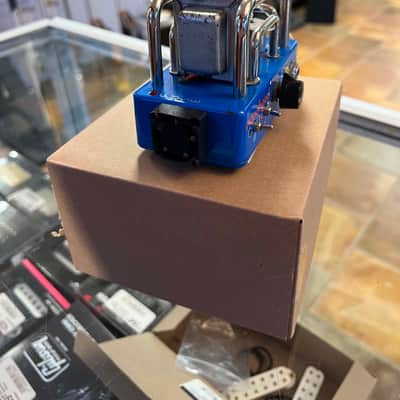

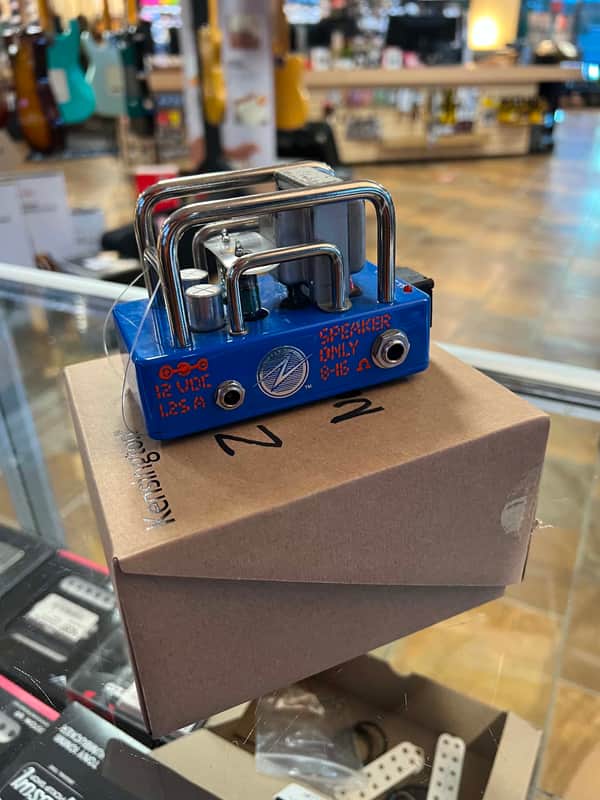

Condition

This amplifier is used and shows cosmetic wear consistent with normal use. There are visible small chips, scratches, and finish wear on the blue enclosure, along with oxidation and discoloration on some of the exposed metal components and transformer housing. The hand-painted graphics remain clearly visible. Please refer to the photos for a detailed look at the cosmetic condition.
