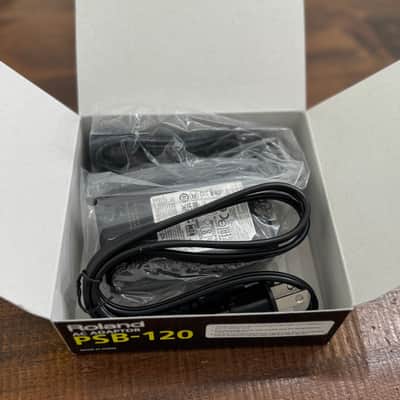

Used in a studio only. Imperfect working order brand new power supply as the old power supply got damaged in a move.

Here are the specifications for the Roland Rubix44 (4-in / 4-out USB Audio Interface):

Audio System & Audio Quality

  • Channels: 4 Simultaneous Inputs / 4 Output Channels
  • Signal Processing / Bit Depth: 24-bit
  • Sampling Frequencies: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
  • Dynamic Range:
    • AD block (Input): 104 dB typ.
    • DA block (Output): 109 dB typ.
  • Headroom: 14 dB

Inputs & Mic Preamps

  • Inputs:
    • 4 x XLR/TRS Combo jacks (Mic/Line)
    • 2 x Hi-Z (High Impedance) inputs for electric guitar/bass (on Inputs 1L and 3L)
  • Phantom Power: +48V (switchable on Channels 1/2 and 3/4)
  • Preamp Quality: Low-noise, high-definition mic preamps
  • Input Impedance:
    • XLR: \ge 4 k$\Omega$ balanced
    • TRS: \ge 15 k$\Omega$ balanced
    • Hi-Z (1/4"): \ge 500 k$\Omega$

Outputs & Monitoring

  • Outputs: 4 x 1/4-inch TRS phone jacks (impedance balanced)
  • Headphones Output: 1 x 1/4-inch stereo phone jack (20\text{ mW} + 20\text{ mW} into 47\,\Omega load)
  • Direct Monitoring: Dedicated front-panel latency-free direct monitor knobs (1/2 and 3/4) with Mono sum switches

Onboard Hardware Features

  • Analog Dynamics Processing: Built-in hardware analog Compressor/Limiter on Inputs 1/2 and 3/4 (selectable modes with threshold control)
  • Level Indicators: Top- and front-viewable LED signal/clip indicators

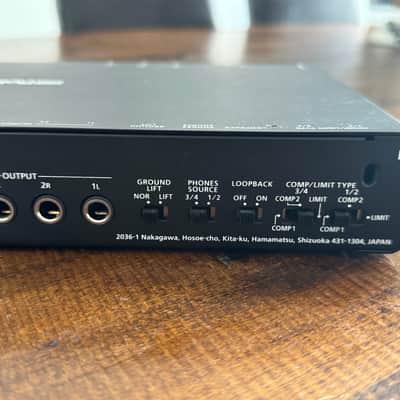

  • Ground Lift Switch: Rear-panel ground lift switch for noise mitigation
  • Loopback Support: Hardware Loopback switch for streaming/podcasting

Connectivity & Power

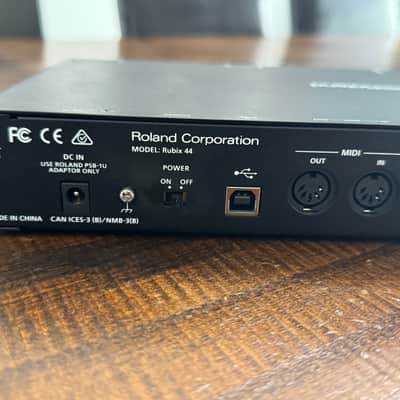

  • USB Interface: Hi-Speed USB (Type-B)
  • MIDI I/O: 5-pin MIDI IN and OUT ports
  • Power Supply: Included AC Adaptor (DC IN)

Dimensions & Build

  • Chassis: Heavy-duty, extensively shielded metal construction
  • Dimensions (W x D x H): 310 mm × 165 mm × 46 mm (12.25" \times 6.5" \times 1.81")
  • Weight: 1.8 kg (4 lbs)

System Compatibility

  • Operating Systems: Windows (7, 8, 8.1, 10), macOS (10.10+), and Apple iOS (iPad class-compliant)


Listed17 days ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • Rubix 44 4x4 USB Audio Interface
Finish
  • Black
Categories
Year
  • 2010s
Computer Connectivity
  • USB
Sample Rate
  • 192 khz
Bus-Powered
  • No
Electronics
  • Analog
  • Solid State
Compatibility
  • macOS
  • Windows
Format
  • Desktop Standalone
Bit Depth
  • 24-bit
Number of Headphone Outputs
  • 1
Number of MIDI Outputs
  • 1
Number of MIDI Inputs
  • 1
Number of Digital Outputs
  • 0
Number of Digital Inputs
  • 0
Number of Analog Outputs
  • 4
Number of Analog Inputs
  • 4
Number of Channels
  • 8
Number of Mic Preamps
  • 4
