Pioneer's flagship DJM-2000 is like the mother of all mixers, featuring a 5.8-inch multi-touch display, a built-in LAN hub for 4 players/2 laptops, a 4-channel USB soundcard, & dedicated frequency-mixing and live-sampling tools, bridging live remixing and production.

The Pioneer DJM-2000 (and its updated counterpart, the DJM-2000 Nexus) are legendary, wide-format DJ mixers that Pioneer designed as the ultimate performance tools. They essentially combined a traditional club mixer with the brain of a music production workstation.

Below are the full specifications, unique feature layouts, and a direct breakdown of how its distinct strengths compare to all other standard DJ mixers.

Core Specifications & Key Features

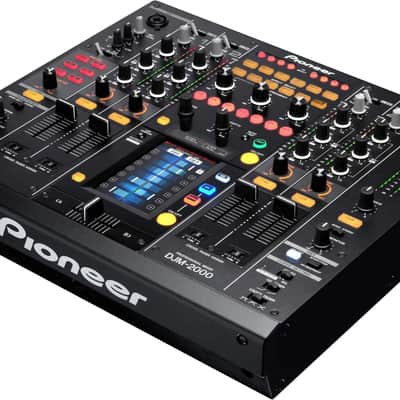

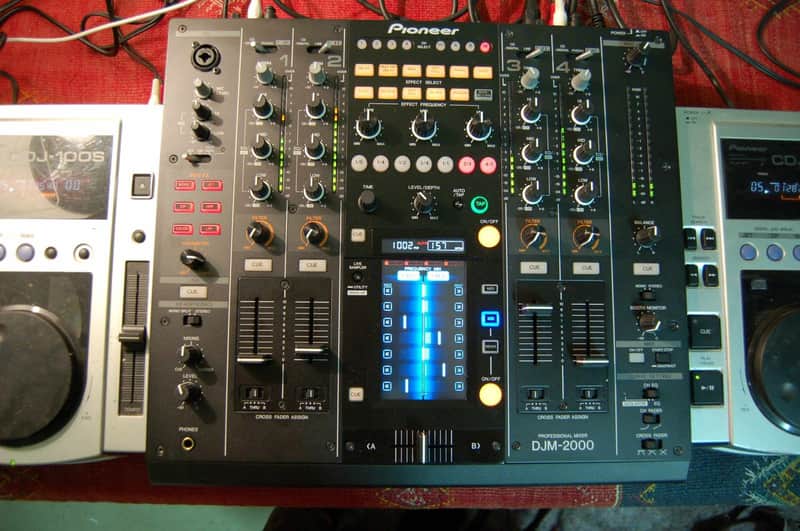

The DJM-2000 is physically massive, designed to sit perfectly flush with flagship media players like the Pioneer CDJ-2000 series.

5.8-inch Multi-Touch Screen: A central touchscreen used for manipulating effects, adjusting a unique 7-band frequency crossfader, and mapping MIDI controls.

Built-in EFX-1000 Engine: Houses a dedicated, physical button-controlled effects layout borrowed from Pioneer's famous standalone EFX-1000 remix processor.

Integrated 6-Port LAN Hub: Features a built-in Ethernet switch on the back, allowing you to connect up to 4 CDJs and 2 laptops using Pro DJ Link without needing an external hardware hub.

6 INST FX (Instant Instrument FX): Dedicated channel-specific effects (Noise, HPF, LPF, Jet, Zip, Crush) with independent sweep knobs on every single channel.

Live Sampler: Allows you to capture a live recording from a microphone or the Master output on the fly and send it directly via LAN to a connected CDJ deck to scratch or loop.

STRENGTHS VS. ALL OTHER DJ MIXERS

While standard club mixers (like the Pioneer DJM-900NXS & NXS2 or the Allen & Heath Xone series) focus on a standard narrow vertical layout, the DJM-2000 completely changes the workflow with a wider than normal width.

1. "One-Button, One-Command" Physical FX Layout

On almost every other DJ mixer (including modern ones like the Pioneer DJM-A9), you have to turn a rotary click-knob to scroll through a list of effects, select your channel, and choose a beat fraction.

• The DJM-2000 Advantage: It features an entire physical grid of dedicated buttons. You can instantly jump from a 1/4 beat delay to a 2-beat roll by pressing a single lit button. You select target channels by tapping individual buttons rather than twisting a dial, which speeds up live performance drastically.

2. Deep Frequency-Specific Mixing

Standard mixers limit your transitions to the physical 3-band EQs (Low, Mid, High) on each channel fader.

• The DJM-2000 Advantage: By using the touchscreen's Frequency Mix mode, the center screen transforms into a 7-band graphic equalizer crossfader. You can literally isolate precise slices of a track's audio spectrum using multi-touch gestures to seamlessly blend elements together.

3. Advanced Touch-Based Performance Modes
Most modern mixers leave complex remixing to external laptops or sampler hardware. The DJM-2000 has three standalone touch-screen performance modes built straight into the metal chassis:

• Sidechain Remix: Delivers 7 types of dynamic audio ducking and pulsing effects controlled entirely via the screen.
• Beat Slice: Visually slices up a live incoming audio track on the screen so you can tap the display to loop and rearrange the arrangement in real-time.
• MIDI Control Mode: Offers 4 different virtual touchscreen control layouts to natively trigger and fader-control DJ software without hitting physical laptop keys.

If you are a performance-heavy DJ who loves real-time remixing, live slicing, and complex effects manipulation without relying on a laptop screen, the physical layout of the DJM-2000 remains one of the most creatively liberating hardware pieces Pioneer ever engineered, DESPITE IT'S LARGER THAN NORMAL FOOTPRINT.
