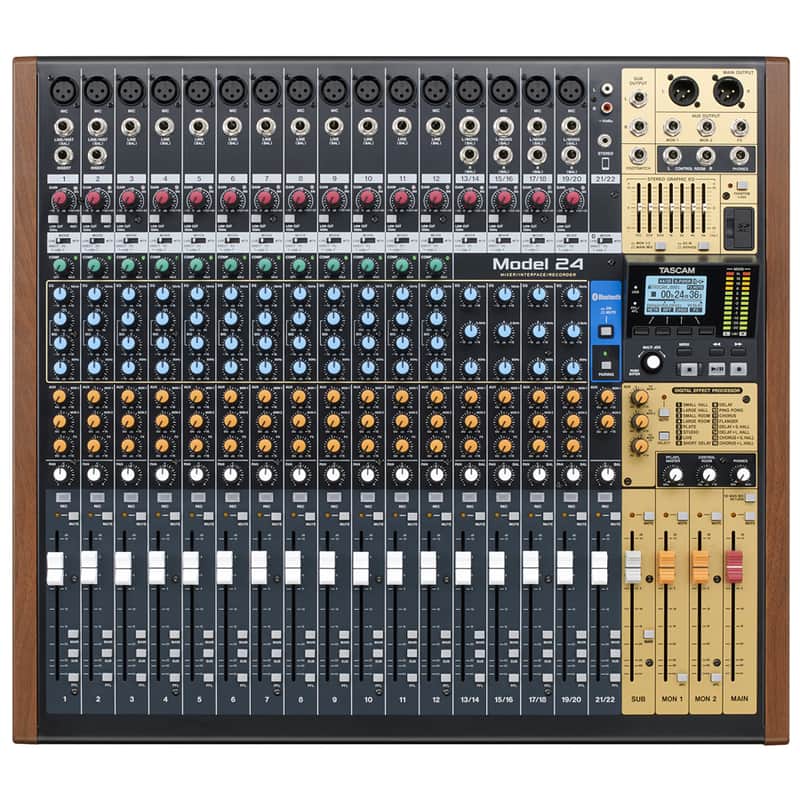

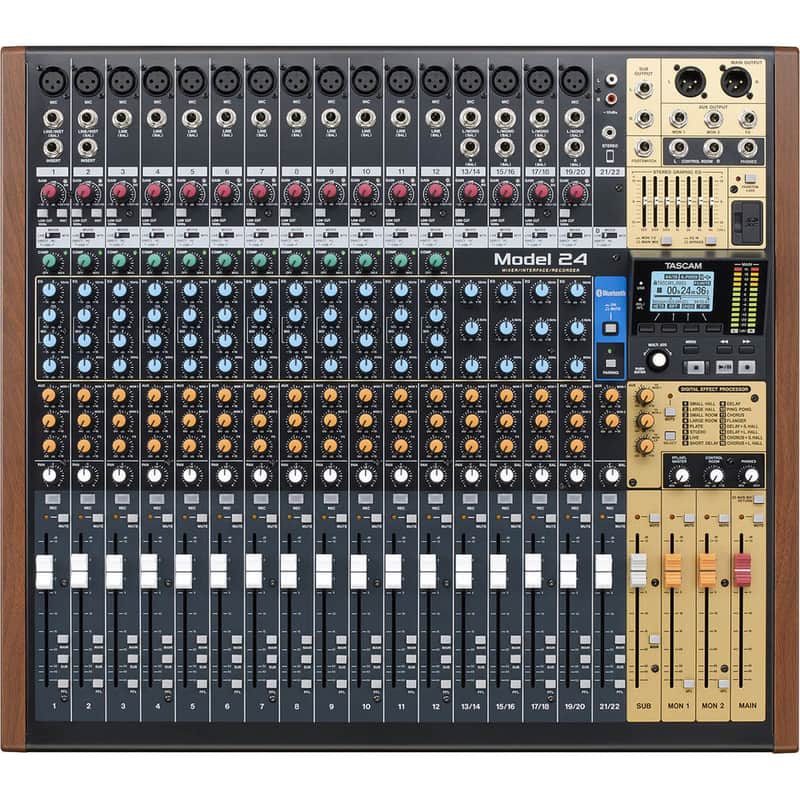

The Tascam Model 24 Digital Mixer is a powerful, versatile, hybrid mixer/recorder/audio interface for both live and recording applications, well suited for bands, studios, conferences, podcasts, houses of worship, and more.
The Tascam Model 24 Digital Mixer is a multi-track live recording console with a simple, intuitive design. One glance is all you need. The Tascam Model 24 was developed for easy operation, with everything you need placed right at your fingertips. 100mm faders allow for precise control over volume. A full set of familiar EQ and Auxiliary knobs remove the need for menu diving, and all input/output connections are on the surface for quick and easy access. The Tascam Model 24 Digital Mixer is truly a modern take on a classic design.
Tascam’s Revolutionary Recording TechnologyFeaturing 16 high-grade Tascam mic preamps in addition to multiple sets of stereo line inputs, the Tascam Model 24 Digital Mixerdelivers studio quality audio performance right from the start. When it’s time to record the Tascam Model 24 Digital Mixer allows musicians and engineers to capture up to 24 tracks simultaneously (at 24bit/48kHz resolution) directly to the SD card, with the ability to punch in/out eight tracks at the same time. And once the take is done, the Tascam Model 24 can easily playback any or all of the recorded tracks through the console for mixdown.
Flexible ConnectivityIn addition to the studio quality mic preamps and powerful EQ and routing options, the Tascam Model 24 Digital Mixer features a dedicated stereo channel 1/8”, dual RCA and Bluetooth™ connectivity. This allows users to easily integrate mobiles devices into the mix for rehearsal playback, walk-in music and more. Finally, the Tascam Model 24 can also act as a powerful audio interface, and connects directly to your PC or Mac for easy integration with your DAW of choice.
RecordAt the heart of the Tascam Model 24 is the legendary Tascam Portastudio multi-track recording engine. Delivering quality and reliability as only Tascam can, the Model 24 enables you to record and play back any combination of 24 tracks of digital audio as well as perform overdubs and punch-ins quickly and easily. Record every live gig you play, build your songs track by track, or play along to pre-recorded backing tracks and record the final performance. The Tascam Model 24 is designed to work the way you work, with no delays, no limitations and no compromises.
ConnectEqually at home in a project studio as on the road the Tascam Model 24 is the ideal analog counterpart to your Digital Audio Workstation (DAW). With enough inputs to capture an entire band in a single take, the Tascam Model 24 provides quick and easy signal routing to and from your computer without having to stop to re-patch and re-set levels. Inspiration won’t wait, and Tascam won’t slow you down.
MixFeaturing 12 Mono input channels and 4 Mono/Stereo channels, the Tascam Model 24 is flexible enough to support most groups on stage but compact enough to carry to the gig. Low noise, high gain preamps, one-knob compressors (on selected channels), flexible routing, powerful EQ and silky smooth 100mm faders combine to deliver a truly dynamic, real-time mixing experience. Combine this with a 7 band EQ, dual monitor sends, and on-board effects making the Tascam Model 24 a truly powerful portable mixing solution, ready to take the stage (or studio). No confusing sub menus, no lost presets, just immediate hands-on control and incredible analog sound quality.
Master and CommanderThe Master section of the Tascam Model 24 has been designed to for fast and intuitive use during live performance and tracking. Directly at hand are premium grade 100mm faders for the Main Mix, both Monitors and Sub-mix as well Mute and assignment buttons. Directly above are the controls for the onboard Digital Effects Processor which allow you to add Reverb, Delay, Chorus, Flanger and more to one or more sources and destination.
Make TracksThe integrated 24 Track Digital Multitrack Recorder makes the Model 24 the ideal choice for performers and songwriters alike. With the press of a button, your entire set is recorded and saved to SD card as individual tracks which can be mixed right there and then or imported into you DAW for editing, overdubs and mastering. And in between live gigs, the Tascam Model 24 serves as the ideal songwriter’s companion with full record, overdub and punch in/out capabilities.
Tascam Model 24 Digital Mixer Features
All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface
WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards
Built-in USB Audio Interface to send/receive audio data to/from DAW
22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)
16 TASCAM Microphone Preamps
Input Mode switch on every input channel
TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)
Preamp Gain Controller with Overload indicator (Channels 1 to 12)
3-Band EQ with a sweepable mid-range frequency (Channels 1 to 12)
100kHz Low-cut Filter (Channels 1 to 12)
7-Band Graphic EQ
16 Pre-set Effects
100mm Long-throw Faders for precise adjustment
Mute, Main/Sub, PLF switches on every input channel
Bluetooth® input supporting both AAC and SBC codecs
SUB Outputs via XLR Balanced and RCA Unbalanced connectors
LINE Inputs via RCA Pin and ?" Stereo Mini jacks
3 AUX Outputs (Monitor 1, Monitor 2, FX)
1 Stereo Output for Control Room
Phantom Power (+48V)
¼" Stereo Headphone Output
Backlit buttons for key operations such as REC and Play
Multi Jog-dial for quick menu operation
12-Segment LED Output Level Meters
Tascam Model 24 Digital Mixer Specifications
Recording Section:
Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or Higher Required.
File System: SD Card; FAT16, SDHC Card; FAT32, SDXC Card; exFAT
Recording File Format: WAV(BWF)
Playback Format: WAV(BWF)
Sampling Frequency: 44.1k / 48k Hz
Bit Depth: 16 / 24-Bit
Recordable Channel: Max. 24 Channels (22ch + 2 Stereo Mix)
Audio Inputs:
MIC IN - CH1 to 12, 13/14 to 19/20:
Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
Maximum Input Level: +10dBu
Nominal Input Level: –8dBu
Minimum Input Level: –58dBu
Gain Adjustable Range: 0 to 50dB
Input Impedance: 1.8kO
Phantom Power Supply: +48V
LINE IN - CH1 to 20:
Connector: 1/4" (6.3mm) TRS Phone Jack (Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: –10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
Input Impedance: 22kO
INSERT - CH 1 and 2:
Connector: 1/4" (6.3mm) TRS Phone Jack (T: Send, R: Return, S: GND)
Return (Ring):
Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 10kO
Send (Tip):
Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100O
RCA INPUT:
Connector: RCA Pin Jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: –10dBV
Input Impedance: 10kO
STEREO INPUT:
Connector: 1/8" (3.5mm) Stereo Mini Jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: –10dBV
Input Impedance: 10kO
OUTPUTS:
MAIN OUTPUT:
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 100O
SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT:
Connector: 1/4" (6.3mm) TRS Phone Jack (T: HOT, R: COLD, S: GND)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance: 100O
PHONES OUT:
Connector: 1/4" (6.3mm) Stereo Phone Jack
Output Level: 80mW + 80mW (32O Loaded)
REMOTE:
Compatibility: Compatible with TASCAM RC-1F Foot Switch
Connector: 1/4" (6.3mm) TS Phone Jack
USB Audio:
Usage: For Connection with PC
Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24-bit
Maximum INPUT and OUTPUT: 24 Inputs / 22 Outputs
USB:
Connector: USB B Type 4-Pin
Format: USB2.0 High-Speed, Mass-Storage Class/USB Audio Class
Bluetooth®:
Output Class: Class 2 (Transmission Range: Approx. 33ft. / 10 m) (Transmission Range May Vary, Depending on Surroundings)
Bluetooth® Version: 4.0
Supported Profile: A2DP, AVRCP 1.0
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T
Power: AC 100 to 240V, 50/60Hz
Power Consumption: 52 W
Dimensions (W × H × D):
576 × 513 × 112.5 mm (Including Side Panels, Knobs and Connectors)
540 × 503 × 112.5 mm (Excluding Side Panels. Including Knobs and Connectors)
Including Side Panels (22.67" × 20.20" × 4.43" / 576 × 513 × 112.5 mm) (Including Knobs and Connectors)
Excluding Side Panels) (20.26" × 19.80" × 4.43" / 540 × 503 × 112.5 mm (Including Knobs and Connectors)
Weight: 22.04 lbs. / 10 kg
Operating Temperature: 41° to 95°F / 5° to 35°C
Supported PC:
Windows:
Compatible Computers: Windows-Compatible Computer with a USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or More
Driver: USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
Screen Resolution: 1280 × 800 Dots or More
Macintosh:
Compatible Computers: Apple Macintosh Computer with a USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or More
Driver: Core Audio
Screen Resolution: 1280 × 800 Dots or More
Supported OS:
Windows: Windows 10 (May 2020 Update) New, Windows 8.1 , Windows 7
Mac: macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra? (10.12) , OS X El Capitan (10.11)
iOS: iPadOS , iOS 13
Tascam Model 24 Digital Mixer Includes
1 x Tascam Model 24 Digital Mixer
1 x AC Power Cord
1 x Owners Manual
