About this listing

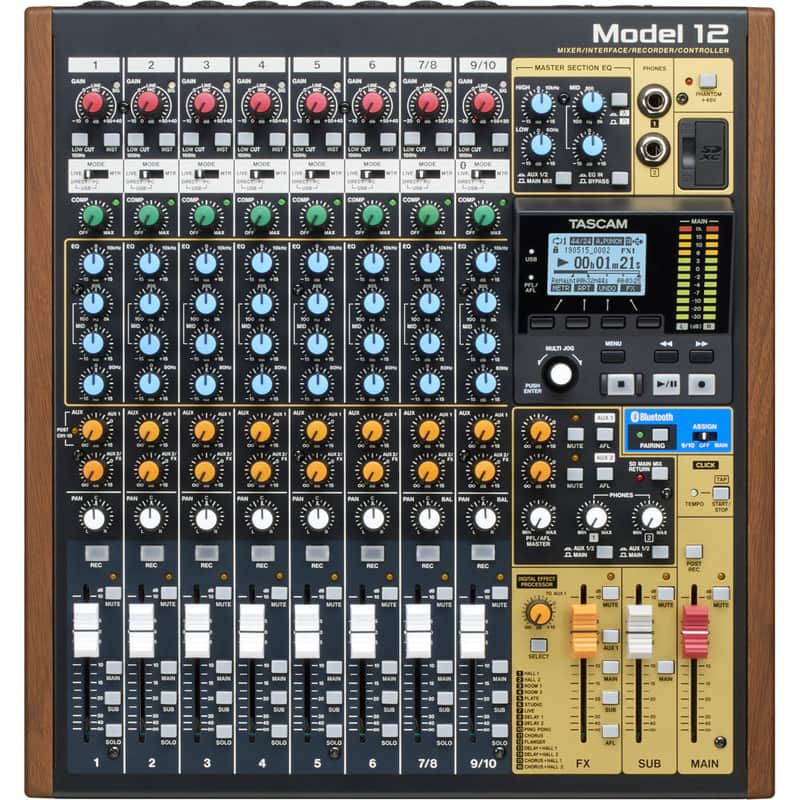

The Tascam Model 12 Digital Mixer is a compact all-in-one integrated mixer designed for music and multimedia creators, songwriters and performers. Featuring 12 in / 10 out USB Audio Interface for DAW connectivity, it provides 12-track multi-track recording with 10 track playback and delivers pristine audio quality.
The Tascam Model 12 Digital Mixer is a desktop tool for music and multimedia creators. Features include TASCAM's critically acclaimed multi-track recorder, USB audio/MIDI interface, DAW control functions, and unique podcasting capability including mix-minus and smartphone inputs. The Tascam Model 12 supports your creative process, production, and workflow from start to finish including podcasting.
12-Track Multi-Track Recording with 10 Track PlaybackThe Tascam Model 12's intuitive internal 12-track recorder records WAV files of up to 24-bit/48 kHz audio quality directly to an SD card, with 10-track playback. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported directly into a DAW for further editing or production.
12 In / 10 Out USB Audio Interface for DAW ConnectivityAn onboard USB Type-C connector facilitates connecting a computer to the Tascam Model 12 for playback and recording utilizing a wide range of popular DAW's.
DAW Control IntegrationBasic external DAW control (Faders, Mutes, Pans, Solos, Record arm, Play, Record, Stop, FF/Rew, Jog) using HUI/MCU protocol emulation is integrated for tactile control of most major DAW's.
Click Output with TAP TEMPOA dedicated click output with TAP TEMPO allows the tempo to be monitored in both live or recording environments. This allows live performers to play with tracks using the built-in multi-track engine or music creators to monitor the tempo when recording.
Seamless Loop Playback with the VAMP Playback FunctionThe VAMP Playback function gives a seamless loop playback between two selected points in a song, enabling interactive live playback for extended solos/jams, and repeated playback of selected track only. It can be also used for personal practice and band rehearsals to enhance the user’s performance.
Onboard MIDI FunctionalityStandard MIDI in/out connectors allow connection with a wide range of keyboards, drum machines, controllers, and other sources that employ MIDI connectors. The Tascam Model 12 can also be used for synchronized operation of multi-track recorders and other external devices like drum machines.
Podcast Your Latest Music and Live Performances to Your Fan BaseThe Tascam Model 12 incorporates several features for podcasting and internet streaming like mix-minus, smartphone input, multiple mic-ready channels, Bluetooth pairing, dual headphone monitoring, and internal multi-track recording. Use the Tascam Model 12 as a versatile live production recorder, USB audio interface and live streaming tool.
All in One Production From Recording to MasteringThe Tascam Model 12's seamless integrated workflow facilitates less focus on the technical and more on the creative. The comfortable, familiar feel of the Tascam Model 12's 60mm faders and 1-knob compressor, 3-band EQ, and TASCAM’s high-quality reverb effects allow fast tweaking of mixes and tones.
Pristine Audio QualityTASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamps with EIN (Equivalent Input Noise) of -128dB ensure natural low noise and high-grade sound quality. Additionally, Hi-Z line level inputs are included on all channels for direct instrument input.
Compact Size with Plenty of InputsThe compact Tascam Model 12 packs 8 XLR mic inputs (with +48V support), 10 TRS line inputs, a 3.5mm (1/8") TRRS input (for Smartphone) and Bluetooth 5.0 input to handle any small format recording or live production environment.
Versatile Routing for Perfecting Your MixSelectable PFL/AFL modes and solo in place (SIP) allow for flexible monitoring of individual channels, eliminating the need to mute each single channel when dialing in the perfect mix.
Dual Headphone MonitorTop-panel accessible dual headphone jacks allow monitoring of two discrete headphone mixes simultaneously for performers and engineers alike.
Tascam Model 12 Digital Mixer Features
10 inputs (8 Monaural XLR mic inputs [+48V support])/10 TRS line inputs) and Bluetooth® 5.0 input, 3.5mm (1/8") TRRS input (for Smartphone)
TASCAM Ultra-HDDA Mic Pre-amp technology (CH 1 thru 6)
1-knob compressor and 3 band EQ installed on all input modules
Equipped with 60mm faders
Selectable PFL/AFL modes and the in-place solo (SIP)
Stereo output to MAIN L-R and SUB L-R, monaural send to AUX1 and AUX2
Dual headphone output with individual volume and source selection
TASCAM FX equipped
Recording function with punch in/out support allows direct SD card 12 track recording / 10 track playback
12 in / 10 out USB audio interface function (USB Type-C connector)
Built-in metronome function
Bluetooth® 5.0 input with AAC and SBC codec support
Equipped with MIDI IN/OUT connectors, USB-MIDI interface function, and MTC output/MIDI clock output with SPP support
Supports simple DAW control (HUI/MCU protocol emulation)
Click output with TAP TEMPO support
Dual footswitch (TRS connector) function allows assignment of transport, FX, etc.
Smartphone input with mix-minus function
Tascam Model 12 Digital Mixer Specifications
Recording Section:
Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB)
Class 10 or Higher Required
File System: SD Card: FAT16, SDHC Card: FAT32, SDXC Card: exFAT
Recording File Format: WAV(BWF)
Playback Format: WAV, BWF
Sampling Frequency: 44.1k / 48k Hz
Bit Depth: 16 / 24 Bit
Maximum Recordable Channel Number: 12-Ch (10-Ch + 2 Stereo Mix)
Audio Inputs:
MIC IN: CH1 to 6, 7, 9
Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Input Level: +10dBu
Nominal Input Level: -8dBu
Minimum Input Level: -58dBu
Gain Adjustable Range: 0 to 50dB
Input Impedance: 1.8k Ohm
Phantom Power Supply: +48V
LINE IN: CH1 to 6, 7/8, 9/10
Connector: 1/4" (6.3MM) TRS Phone Jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40 dB: CH 1 to 6, -20 to +30 dB: CH 7/8 and 9/10
Input Impedance: 22k Ohm
INST IN: CH1 to 6, 7, 9
Connector: 1/4" (6.3MM) TS Phone Jack (T: HOT, R: GND, S: GND, Unbalanced)
Maximum Input Level: +13.8dBV
Nominal Input Level: -4.2dBV
Gain Adjustable Range: -10 to +40 dB (CH 1 to 6), -20 to +30 dB (CH 7 and 9)
Input Impedance: 1M Ohm
INSERT: CH 1 and 2
Connector: 1/4" (6.3mm) TRS Phone Jack (T: Send, R: Return, S: GND)
Return (Ring):
Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 5k Ohm
Send (Tip):
Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100 Ohm
MUSIC/TALK: CH 9/10
Connector: 1/8" (3.5MM) TRRS Jack (For Smartphone, Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k ohm
Outputs:
MAIN OUTPUT:
Connector: XLR 3-32 (1: GND, 2: HOT, 3: COLD, Balanced)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 200 Ohm
SUB OUT, AUX OUT:
Connector: 1/4" (6.3MM) TRS Phone Jack (T: HOT, R: COLD, S: GND, Balanced)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance: 200 Ohm
PHONES OUT: PHONES 1 And 2
Connector: 1/4" (6.3MM) Stereo Phone Jack
Maximum Output Level: 45mW + 45mW (32 Ohm Loaded)
FOOTSWITCH: Compatible With TASCAM RC-1F Foot Switch
Connector: 1/4" (6.3MM) TRS Phone Jack
CLICK: Metronome Click
Connector: 1/4" (6.3MM) TRS Phone Jack
USB Audio: For Connection With PC
Connector: USB Type-C
Format: USB2.0 High-Speed, Mass-Storage Class/USB Audio Class
Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24 Bit
Maximum INPUT: 12Ch
Maximum OUTPUT: 10Ch
Bluetooth®: to MAIN or CH 9/10
Version: 5.0
Output Class: Class 2 (Transmission Range: Approx. 33 Ft / 10 m) (Transmission Range May Vary, Depending On Surroundings)
Supported Profile: A2DP
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T
Power: AC 100 to 240V, 50/60Hz
Power Consumption: 16W
Dimensions (W x H x D): 343 × 360 × 98.8mm / 13.5 × 14.2 × 3.9 inch (Including Knob Height and Protrusion)
Weight: 4.3 kg / 9.5 lb
Supported PC:
Windows:
Compatible Computers: Windows-Compatible Computer With A USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or More
Driver: USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
Screen Resolution: 1280 × 800 Dots or More
Mac:
Compatible Computers: Apple Mac Computer with a USB2.0 Port
CPU: Dual Core / 2GHz or Faster
Memory: 2GB or more
Drive: Core Audio
Screen Resolution: 1280 × 800 Dots or More
iOS/iPadOS:
Driver: Core Audio (To Connect An iOS/iPadOS Device That Has a Lightning Connector, a Genuine Apple Lightning to USB Camera Adapter (Sold Separately) is Necessary.
Supported OS:
Windows: Windows 10 (November 2019 Update) , Windows 8.1 , Windows 7
Mac: MacOS Catalina , MacOS Mojave , MacOS Sierra? (10.12)
iOS: iPadOS 14 New, iOS 14 New, iPadOS , iOS 13 , iOS 12 , iOS 11
Tascam Model 12 Digital Mixer Includes
1 x Tascam Model 12 Digital Mixer
1 x AC Adapter
1 x Owners Manual
Manufacturer Warranty
