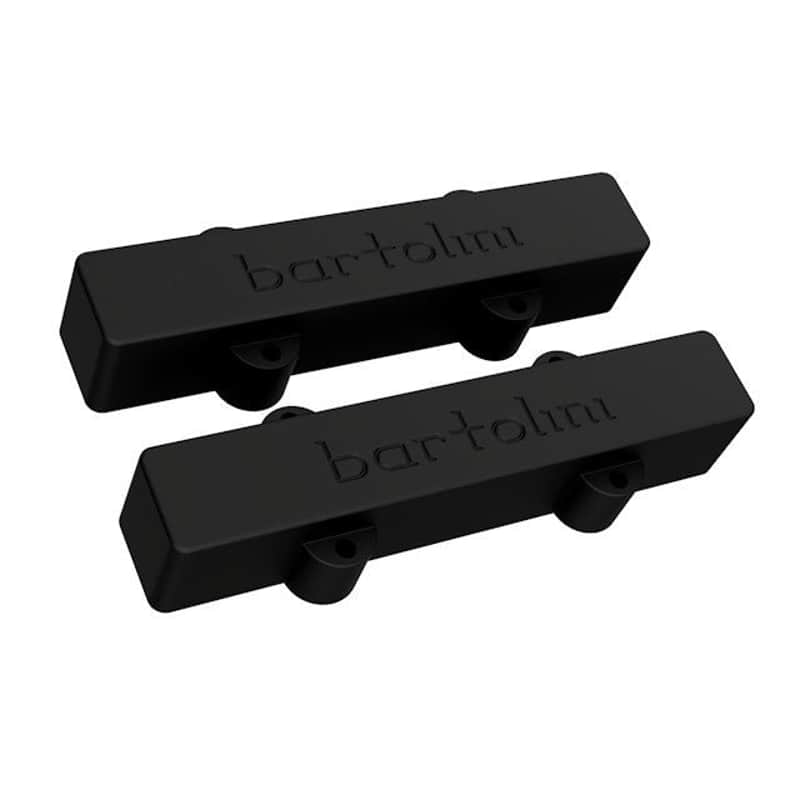

Bartolini JV55CBJD 5 String Dual Coil Classic Bass Pickups for Fender® American Standard® (Narrow)
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
FITS AMERICAN STANDARD 5 STRING JAZZ
CLASSIC BASS SERIES
STRONG LOW & LOW MIDS WITH PRESENT HIGHS
MADE IN THE US
FREE SHIPPING IN THE USAEXPERT TECHNICAL SUPPORTIN STOCK MEANS IN STOCKDESCRIPTIONRich, deep, hum-free voice with high-end clarity and warmth for your American Fit J-Style bass.
American Fit shape pickups are the modern variation of Fender American Standard V for narrower pickup cavities. Over the last decade, more J-Style 5-string bass builders are routing for the AS length, but Standard 4-string width. American Fit are designed as direct upgrades for this new variation with no routing required.
Classic J-Bass pickups give you enhanced treble response and narrower apertures for incisive attack and focused sound without harshness. This added treble definition vastly increases the tonal range available in active or passive instruments. When you dig in, they are responsive and growly. When you pull back, they are clear and sweet. And they’ll take any slapping and popping you want to give them. The Classic Bass series is popular with progressive, jazz, gospel, and metal musicians where articulation is critical. They are sweat-proof and won’t crackle and thud when you touch them or hit them with the strings.
If you play a wide variety of music, you know you need some pro-level pickups, but you don’t want to do a big upgrade project, Classic Bass pickups are a great choice. They are passive and will work with your current electronics in most basses. These dual inline-coil pickups are hum-cancelling even soloing the neck or bridge pickup, so they are well suited for studio or stage.
DIMENSIONSSize (Neck):
3.96" [101mm] Long
.73" [19mm] Wide
Size (Bridge):
4.09" [104mm] Long
.73" [19mm] Wide
JV55CBJD Wiring Diagram
Coil Structure:
Dual Inline Hum-killing
Cable Type:
Shielded Coaxial Hot Core
Magnetic Circuit:
2 types of carbon steel, brass, and copper powered by ceramic (ferrite) magnets projected for focused aperture
Opposite polarity for bass and treble coils for neck and bridge pickups
JV55CBJD-S1 - Neck
- DC Resistance: ~9.3KΩ
- Resonant Frequency: ~5.2KHz
- Sensing Width: 3.07" [78mm] Max 2.32" [59mm] Min
JV55CBJD-L1 - Bridge
- DC Resistance: ~10.5KΩ
- Resonant Frequency: ~4.4KHz
- Sensing Width: 3.19" [81mm] Max 2.36" [60mm] Min
