Passport Designs MIDI Interface A-001 — Apple II — First Generation 1983 — Complete IN/OUT/THRU Harness — Made in USA

PASSPORT DESIGNS MIDI INTERFACE A-001 — FIRST GENERATION — © 1983 — APPLE II — COMPLETE CABLE HARNESS

One of the earliest commercially produced Apple II MIDI interfaces — first generation Passport Designs A-001, © 1983, Made in USA (Menlo Park, California). Removed from a long-stored single-owner Apple IIe setup.

Passport Designs was the pioneering company in Apple II music software and hardware. Their MIDI Interface A-001 predates nearly all Apple II MIDI competition and was sold alongside their landmark MIDI/8 Plus sequencer software — the first serious MIDI sequencer available for the Apple II. In 1983–84 this setup was used in professional studios to sequence Roland Jupiter-8, Juno-60, and Yamaha DX7 synthesizers.

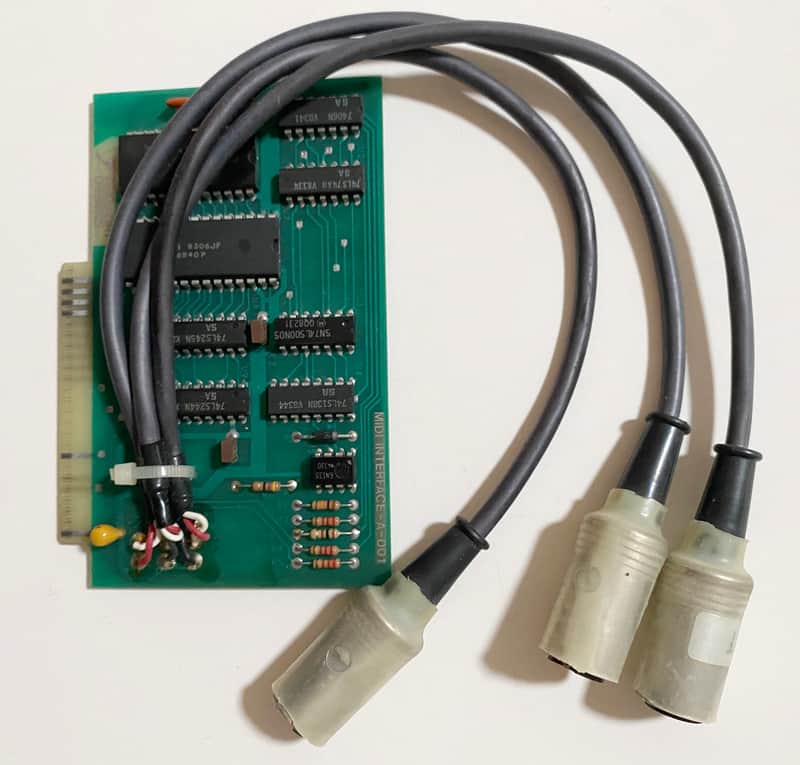

COMPLETE THREE-CONNECTOR MIDI HARNESS The most important detail: all three MIDI connectors are present and original — MIDI IN, MIDI OUT, and MIDI THRU. This harness is most commonly found incomplete, with one or more connectors missing or replaced. Finding a complete original harness is genuinely uncommon.

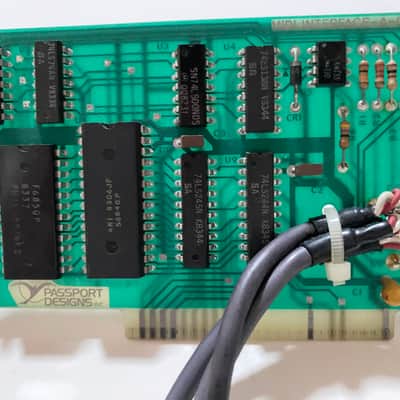

TECHNICAL — AMI S6840P Programmable Timer Module — core MIDI clock generation chip — Philips F6890P UART — handles MIDI serial data at correct 31.25 kbaud — 6N135 optoisolator — standard MIDI IN optical isolation per MIDI specification — Apple II expansion slot card — installs in slots 1–7 — PCB marked: MIDI INTERFACE-A-001 / © 1983 PASSPORT DESIGNS, Inc. / MADE IN USA — Chip date codes 8337, 8344, 8345 — consistent with first production run

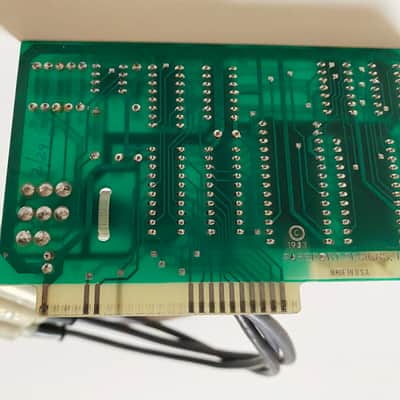

CONDITION Very good physical condition. All chips present, original and seated. PCB clean with no visible corrosion or damage. Edge connector in good condition. Complete three-connector MIDI harness intact. Untested — sold as-is due to age. Standard caveat for vintage expansion cards of this era.

COMPATIBILITY Apple II, Apple II Plus, Apple IIe — expansion slot card only. Not compatible with Apple Mac, PC, or any modern computer.

SHIPPING Located in Sydney, Australia. International shipping available — buyer pays postage. Tracked international post only. Please message before purchasing to confirm shipping costs to your location.
