CAREFULLY READ ITEM DESCRIPTION AND TERMS OF SALE. Thanks--

ITEM DESCRIPTION: Up for your consideration is a Chameleon Labs 7602 MKII Preamp and EQ with Filter and impedance switch. The equalizer is very good and these unit provide a whole lotta headroom with up to 80db of preamp gain! This unit is in very good preowned condition and ships with its power supply. Unit will be boxed up tight to ensure safe transit during shipping. Thanks for stopping by!

The Model 7602 MKII Microphone Preamplifier/Equalizer is based on a classic and revered design utilizing pure Class 'A' circuitry. This unit is made with 100% discrete components, hand wound transformers and was fabricated to precisely match vintage counterparts manufactured in the early to mid 70's. The Model 7602 MKII represents a dramatic breakthrough in delivering vintage audio performance at an affordable price.

Equalizer Section (Selectable 3 band design with a flexible filter section)

Filter - This is a high pass filter with 3db loss at 300Hz, 160Hz, 80Hz, and 50Hz with an 18db cut per octave slope.

Low Equalization - This section has a shelving slope with four frequency selections: 220Hz, 110Hz, 60Hz, and 35Hz. This equalizer affects the selected frequency and all others below it. The gain control provides 20db of boost or cut.

Mid Equalization - This section has a peaking characteristic with six frequency selections: 360Hz, 700Hz, 1.6k, 3.2k, 4.8k, and 7.2k. The gain control provides 20db of boost or cut.

High Equalization - This section has a shelving characteristic with five frequency selections: 16k, 12k, 7k, 4.9k and 3.4k. This section adjusts the selected frequency and all others above it. The gain control provides 20db of boost or cut.

Model 7602 MKII Features

• Fully balanced transformer mic and line inputs
• Balanced XLR output
• Hi-Z direct input for instruments on the front panel
• LED input metering *NEW
• Selectable mic impedance switch (300 or 1200 Ohms) *NEW
• 48VDC phantom power switch
• 180 degree phase reversal switch
• 20 position gold contact ELMA rotary gain switch for both Mic and Line sections
• Output level control functions as a fader when going straight to tape
• Carnhill mic and output transformer optional upgrade ($249 MSRP) *NEW
• One-year warranty

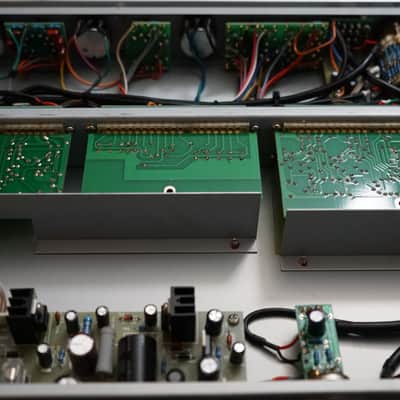

Electronics

By employing classic circuit design, polystyrene capacitors, a gold contact ELMA gain selector and custom wound transformers, Chameleon Labs ensures that the Model 7602 MKII will exhibit classic audio sound.

The Model 7602 MKII has a transformer balanced input with a range between 20dB and 80 dB of gain. The separate line input is transformer balanced and accepts input levels from -20 to +10dB.

TERMS: WE SHIP ALL OVER THE WORLD. Shipping within the lower 48 (the contiguous United States) ship via UPS, USPS, or FedEx Ground. Buyers in Alaska, Hawaii, and Puerto Rico, please make contact for a shipping quote. ALL international shipments ship via USPS International Priority. ALL shipments are fully insured and require signature when delivered. INTERNATIONAL BUYERS need to make contact for shipping price quote (as shipping will be different from country to country).

NOTE: Returns are accepted for the rare occasion when an item arrives damaged or is not as described. We do not issue refunds merely because one changes their mind or decides the item isn't really what they want. ALSO: All international sales are final, as we are unable to accept returns from outside the USA. Thanks!

ROCK HARD, ROCK STEADY, ROCK FRICKIN' ON
