EAD10 is equipped with a variety of effects and trigger tones that correspond to a wide range of music genres.

With a simple setup, you can enjoy studio-quality sound through headphones.

With EAD10, it's easy to share audio data and videos with bandmates and friends.

By using the dedicated iOS app, you can upload high-quality videos directly from your mobile device.

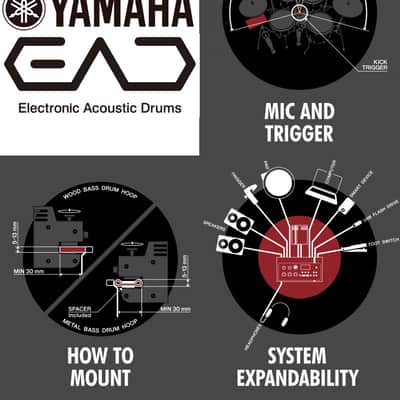

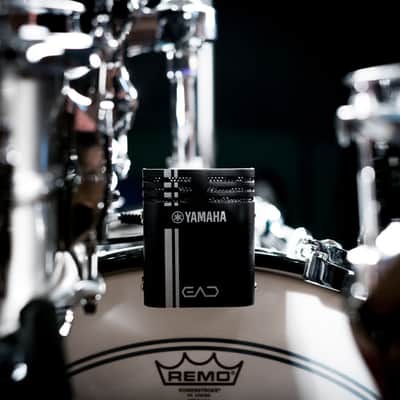

Just attach the EAD10 sensor unit to the bass drum hoop and you're ready to go. A stereo condenser microphone with an XY arrangement uniquely adjusted by Yamaha engineers captures the audio signal of the drum performance and sends it to the main unit along with the bass drum trigger signal. You can monitor the sound of the entire drum set in high quality with natural balance and localization.

The EAD10 makes practicing, recording, and playing acoustic drums even richer and more enjoyable.

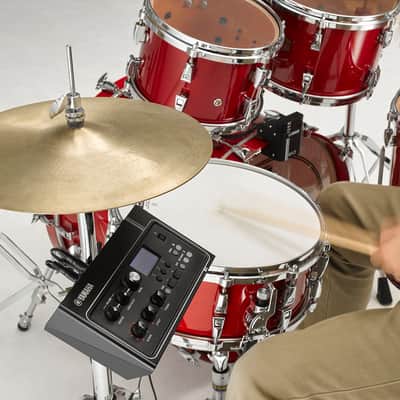

Simply attach the sensor (microphone section) to the bass drum to mic the entire drum set's sound in a well-balanced manner.

Equipped with 50 preset scenes that dramatically change the acoustic drum sound. You can save 200 customized user scenes.

Using the app, you can shoot, mix, edit, and upload high-quality performance videos using EAD10 directly from the app.

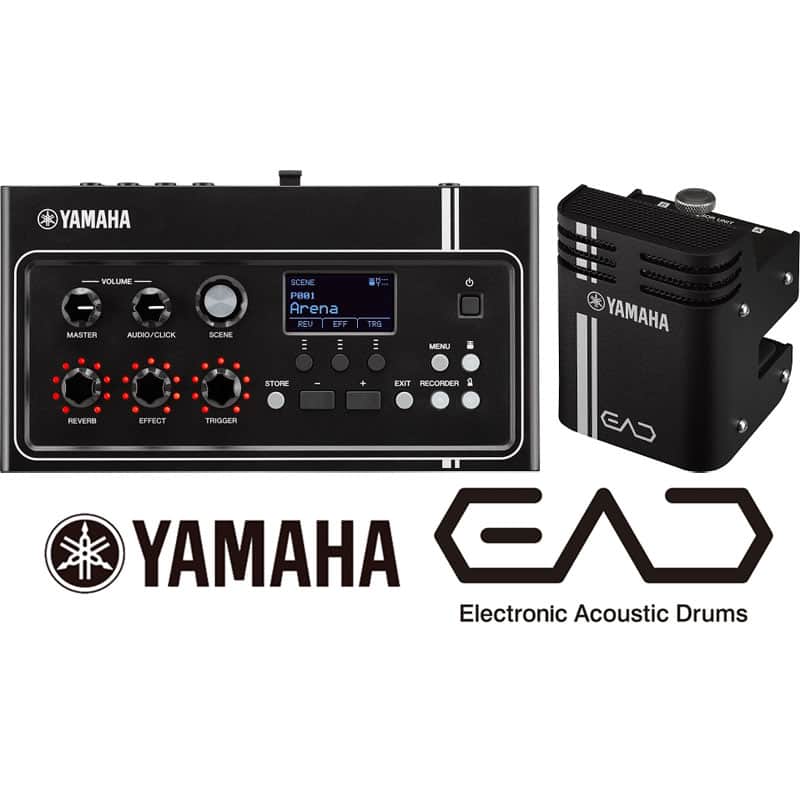

main unit

Dimensions Width 260mm

Height 63mm

Depth 138mm

Weight Weight 654g

tone generator

Number of scenes Preset: 50 User: 200

Number of reverb types: 11

Number of effect types Microphone: 21 Trigger: 10

Trigger tone Sound source method AWM2

Maximum polyphony 64

Number of voices: 757

recorder

Recording time Built-in memory approximately 1 minute 30 seconds

USB flash memory approximately 30 minutes/file

Format Recording/Playback WAV (44.1kHz, 16bit, stereo)

wave

Number of waves that can be read: up to 100

Playback sampling rate 44.1kHz

Wave memory 32 MB

Maximum loadable sample size: 1 mono sample: 1.75MB, 1 stereo sample: 3.5MB

Sample format WAV (16 bit)

click

Tempo 30-300BPM, tap tempo function

Beat (time signature) 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16

Timing accent, quarter note, eighth note, sixteenth note, eighth note triplet<BR>

Other functions: Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ

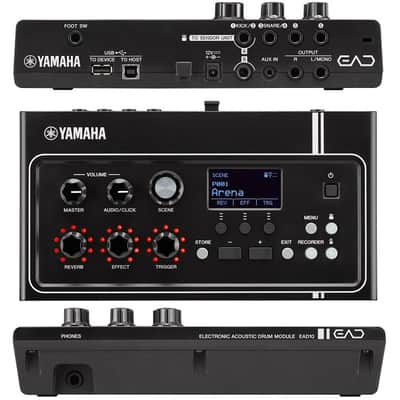

Connection terminals DC IN (12V), PHONES (stereo standard phone terminal), AUX IN (stereo mini terminal), OUTPUT L/MONO, R (standard phone terminal), USB TO DEVICE, USB TO HOST

Sensor input Microphone sensor B (stereo standard phone jack)

Trigger input Stereo (L: trigger, R: trigger) ①KICK/② (also serves as A), ③SNARE/④ (stereo standard phone jack)

3 zones (L: trigger, R: rim switch)

⑤, ⑥ (stereo standard phone jack)

Pedal FOOT SW (stereo standard phone jack)

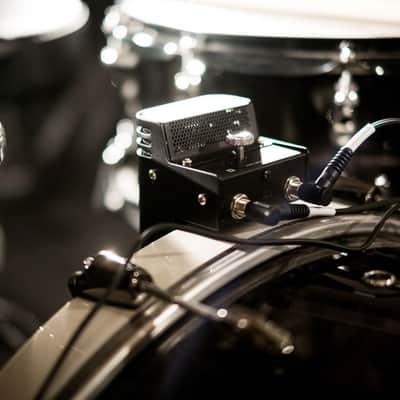

sensor unit

Dimensions Width 76mm

Height 88mm

Depth 78mm

Weight Weight 464g<BR>

Connecting terminal

Sensor output For trigger sensor A (standard phone terminal)

Microphone sensor B (stereo standard phone terminal)

Sensing method

Microphone High sound pressure microphone x 2

Trigger bass drum only x 1
