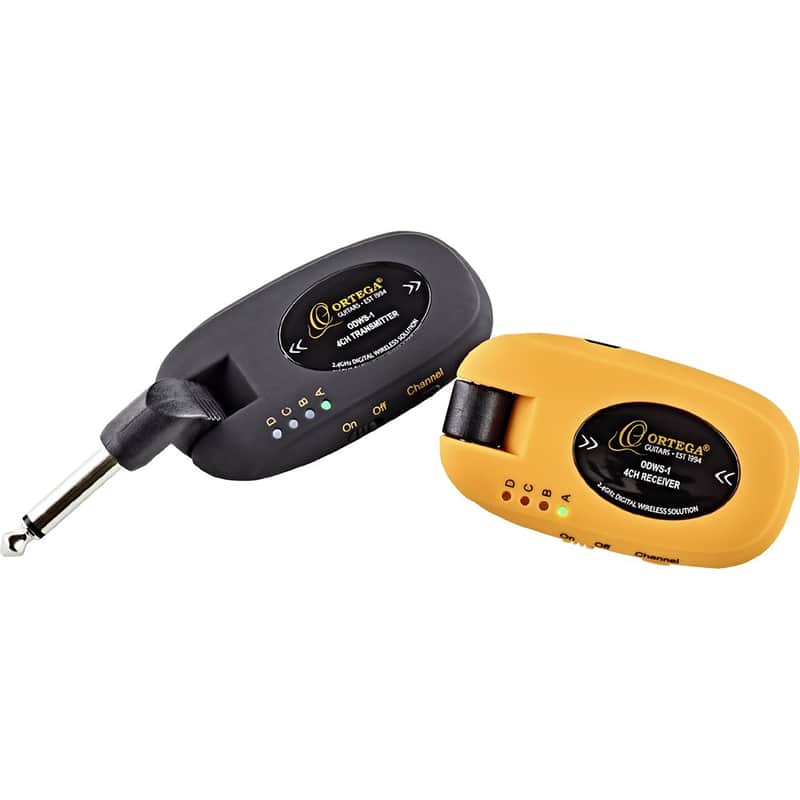

DIGITAL WIRELESS SYSTEM

The Ortega Digital Wireless System features 2.4 Ghz digital technology and broadcasts incredible crystal-clear audio quality. Ready to use in seconds the system offers four operating channels (A, B, C, D), power/charge indicator and a rechargeable, built-in battery (+2500 charging cycles). The latency of < 5 ms and a full range frequency coverage of 20 Hz – 20 kHz secures great, detailed, and real-time sound. The ODWS supports most active & passive systems as well as acoustic piezo devices.

Features:

• 2.4 GHz ISM worldwide
• Up to 30 meters (100 ft.) of range without any dropout**
• 4 channels
• Up to 4 systems simultaneously
• Rubberized SHOCKPROOF housing (ODWS-1 & ODWS-1BK)
• 24 bit/48 kHz uncompressed digital transmission
• Easy to start in seconds – plug & play
• Auto-standby (sleep mode) after 10 seconds when there is no signal
• One transmitter can serve multiple receivers
• Rechargeable via USB (cable included!)
• Up to 5 hours use on a single charge
• Appx. 225º adjustable jack to fit almost every instrument
• 2.4 GHz technology is permission free/approved for use
• in America (North and South), Europe, Asia, and Australia***
• THD + Noise: > 0.05 % (1KHz @ -10dbFS)
• Dynamic Range: > 103 db A weighted
• Operating temperature: –10° to 50° Celcius (14° F – 122° F)
• Includes 1x Transmitter, 1x Receiver, 1x USB double head charger cable

Description:Latency:

• < 5ms

Range:

• 30m (98.43 ft)

Batterylife:

• up to 5 hours with one charge

Number of channels:

• 4

Design:

• Transmitter: Black/Orange / Receiver: Black/Orange
• Plugs: 1/4" instrument plugs (Transmitter/Receiver)

Type:

• Instruments

Specification:

• shock-proof rubber housing
• On/Off switch
• Channel selection button
