PLEASE CONTACT BEFORE PURCHASING - Shipping may cost less than what I have listed, so please contact me with your location and I will update the shipping price for you.

Selling my Voodoo Lab HEX true bypass loop switcher in very good condition. If you're looking at this, I'm pretty sure you know what this is. I had this mounted on my pedalboard running through the effects loop of a GT-1000 so that I was able to incorporate one or many analog pedals into the signal chain of my patches. It's controlled by MIDI and simple to control. Instant activation with no switching sounds. It adds SO MUCH flexibility to a pedalboard whether digital or analog.

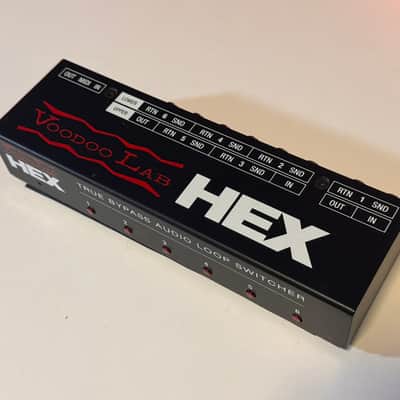

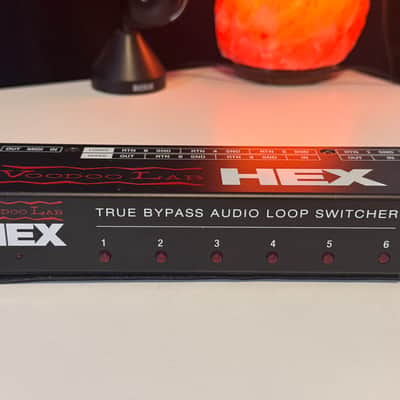

HEX is a true bypass audio switcher in a compact format. A single unit can easily be placed on a rack shelf with pedals, mounted under most Pedaltrain pedalboards, or 2 units can be combined giving you 12 audio loops in a single 19″ rack space. Built with the finest gold relays sealed in nitrogen, your tone will stay pure and dynamic no matter what kind or how many effects you use.

HEX includes 6 true bypass loops, with loop number 1 being completely independent to allow for various tasks like A/B switching, amp channel switching, and more. And, HEX features Quiet Switching output buffer that kills pops and clicks, while making your final output tone better and more consistent regardless of length and type of cable.

Features

• 6 true bypass audio loops using the finest gold contact relays
• Instantly recall preset combinations of effects
• Isolated loop for A/B, amp channel select and remote tap tempo
• Compact size easily fits on rack shelves and pedalboards
• Rackmount 2 units into a single space with optional bracket
• Compatible with our Ground Control Pro or any MIDI controller
• Output buffer preserves tone even with long cable run to amp
• Advanced Quiet Switching technology for lowest possible noise
• Conveniently power from any Pedal Power 9VDC output
• Legendary Voodoo Lab quality and reliability!
• Hand-built in the U.S.A.

Tech Specs:

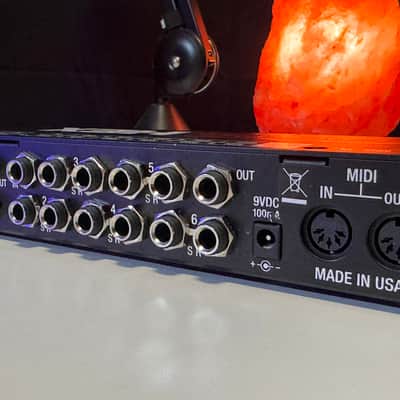

Inputs/Outputs

• 1/4” mono loop inputs (2): For loops 1 and 2 only
• 1/4” mono switchable audio loops (6 send/returns)
• 1/4” mono main audio out (1)

MIDI

• MIDI In: Accepts MIDI commands and provides phantom power
• MIDI Out: Passes MIDI commands to other MIDI devices

Controls/Switches

• LED function buttons (6): Switches functions on/off, saves programs

Power Requirements

• 9-12V DC at 100mA
• 5.5mm x 2.1mm barrel connector, center negative polarity

Physical

• Dimensions: 8.5" x 2.9" x 1.75" (216 x 74 x 44 mm)
• Weight: 1.1 lbs. (500g)

Condition

• Fully functional
• Very good overall shape
• Velcro fitted to the underside from pedalboard mounting
• Normal light signs of use

No issues, no crackles, everything works as it should.

Only selling due to changes in my rig.

Happy to answer questions or provide more photos.
