EFNOTE Pro Stage Drums Module & Breakout Box System

Enhance Your Stage Experience with the New EFNOTE PRO Stage System

EFNOTE PRO is designed to digitize your drum riser and elevate your stage presence. By simply connecting up to 12 XLR outputs to your stage snake or soundboard, you will be receiving the highest quality drum samples on the market with absolute consistency and perfect isolation. A robust selection of shell pack configurations are available, so that each player and venue can find their dream setup.

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals
• Low-profile and compact control surface with touch-screen full-color LCD

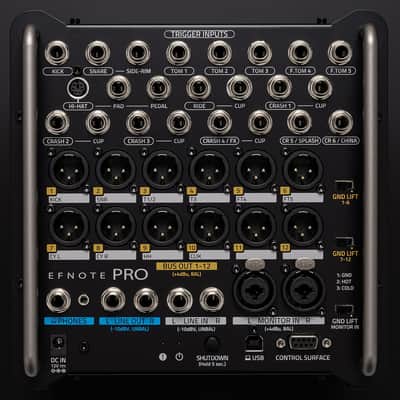

• Floor-standing base unit with robust enclosure and reliable cable connections

Contains Legendary Drums Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
• Raw and organic, NOT synthetic and electronic
• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds
• Contains modern trash/effect/stacked cymbal sounds

7 Shells & 8 Cymbals

• Build a custom kit for any stage
• 5x 2-zone input for toms
• 6x 3-zone, 2x 2-zone input for cymbals
• Traditional individual trigger connections (TRS), for professional reliability

ELISE Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch
• The new algorithm for even more natural dynamics

12-ch Buses to the Console

• 12-ch buses separate from main bus for flexible routing
• Balanced XLR outputs
• Dedicated Bus Com-pression for Bus 1 to 6
• Bus HPF/2-Band-EQ for Bus 1 to 12
• Stereo-Link for stereo channelization of two adjacent buses
• Ground lift switch

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console
• 2-ch Line In (TRS unbalanced) for an extra sampling/percussion pad
• Adjustable volume
• Ground lift switch for XLR jacks

High-Powered Headphone Amp

• 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)
• Dedicated 2x headphone amp circuit for enough loudness
• High quality DAC and audio circuit

USB Multi-Track Recording

• Simultaneous record-ing of 12-ch multi-track Audio and 16-ch MIDI is available
• Supports macOS Big Sur or later and Windows 10/11
• Confirmed with major DAWs
• 5-pin legacy MIDI Out is also available
