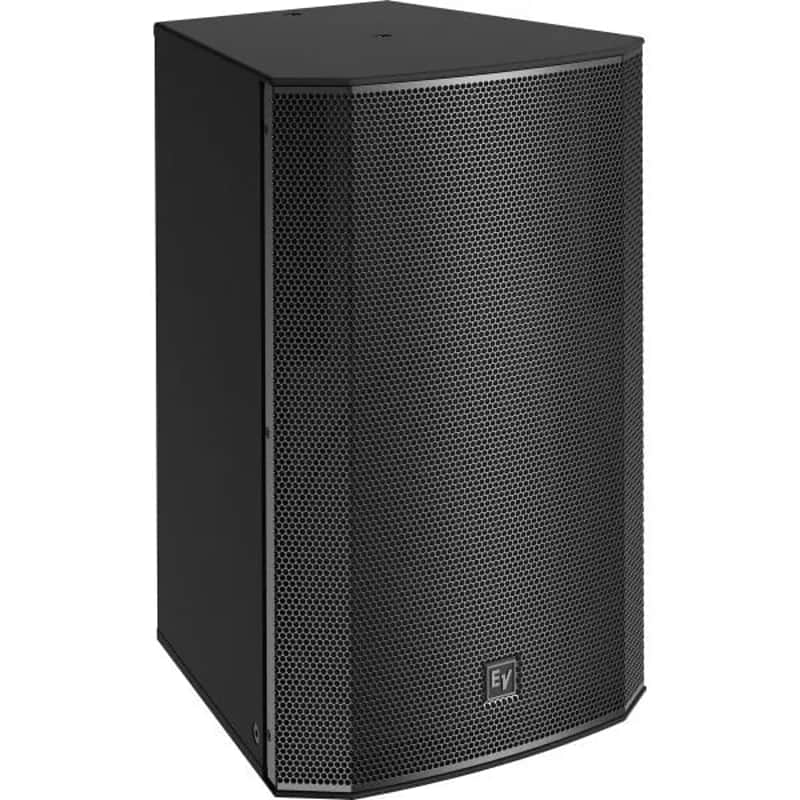

Electro-Voice EVC-1152-95PIB | 15" 2way speaker, 90°x55° weatherized, black. New with Full Warranty!

15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide

Power rating: 350 W Continuous, (1400 W Peak) Passive system: 98 dB, 129 dB maximum

Gland nut cover and stainless steel grille on PI versions

Optional high quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package.

EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU). The high frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response.

The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels.

The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount.

All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts. For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Specifications

Max Calculated SPL129

Rotatable coverage 90° x 55°

Frequency Range (-10 dB) 50Hz-25kHz

Suspension eight M10 Suspension Points, optional U Bracket or pan/tilt wall mount

Minimum Impedance 6.7 ohm

HF Transducer DH-3
