The KB 4 was designed as a personal PA system in a keyboard amp. The KB 4 features separate inputs on each channel and can easily handle voice, microphones and other instruments, including acoustic and electric guitars, drum machines and backing machines, such as CD and DAT players. Other essential features include stereo effects loop, ground lift, master level, XLR balanced stereo line out, DDT™ defeat switch and the capability to drive an external speaker.

Features

15 inch speaker and tweeter

75 watts/100 watts with external speaker

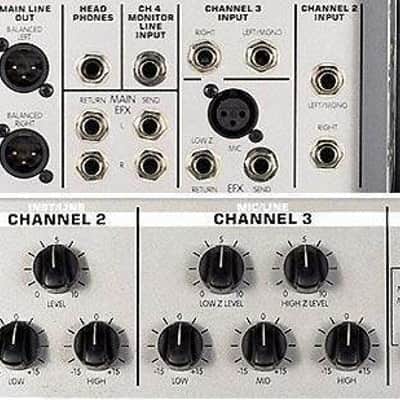

Channels 1 & 2 have stereo 1/4" inputs

Channel 3 features stereo 1/4" and mono XLR inputs

Channel 4 1/4" monitor input

Stereo mixer with 2-band EQ and main effects send/return

Mic/Line channel with 3-band EQ and effects send/return

Monitor input with level control and assign

Headphone out with level control

Built-in casters and handle for easy moving

4 Channels

Weight Unpacked: 72.00 lb (32.659 kg)

Weight Packed: 83.00 lb (37.648 kg)

Width Packed: 27.75" (70.485 cm)

Height Packed: 28" (71.12 cm)

Depth Packed: 21.5" (54.61 cm)
