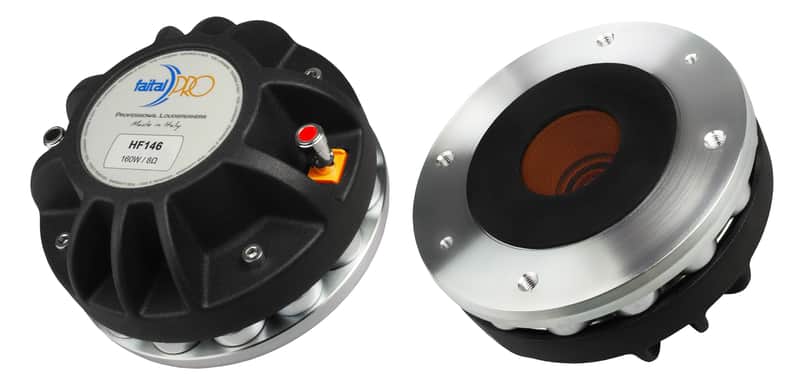

Faital Pro HF146R-8

1 PAIR (two (2) units). Brand New in the factory-sealed box. Full manufacturer's warranty. Ready to ship!

The FaitalPRO HF146R compression horn driver has an exit diameter of 1.4 inches and utilizes a neodymium radial slug design to maximize magnetic field density in the voice coil gap. This, paired with its ketone polymer dome diaphragm, results in a rich balanced sound across a wide frequency range from 700Hz and up . The HF146R has a slightly longer voice coil winding than the HF146 which lessens compression and improves dynamics at high power. It can produce 111 dB SPL with just 1 watt of input power and boasts an average sensitivity of 109 dB, while weighing less than 5 pounds. The driver features an annular phase plug and is manufactured in Italy.

Specifications:

• Power handling: 40 watts RMS (above 650 Hz), 80 watts RMS (above 900 Hz) with recommended crossover of 900 Hz, 12 dB/octave slope

• VCdia: 2.56"

• Impedance: 8 ohms

• Frequency response: 700-18,000 Hz

• SPL: 109 dB 1W/1m

• Dimensions: 4.84" diameter x 2.50" depth

• Bolt pattern: 4 x M6

• Weight: 4.41 lbs

Please contact us with any questions you may have. We are more than happy to help!
